Hospital Bed Lift

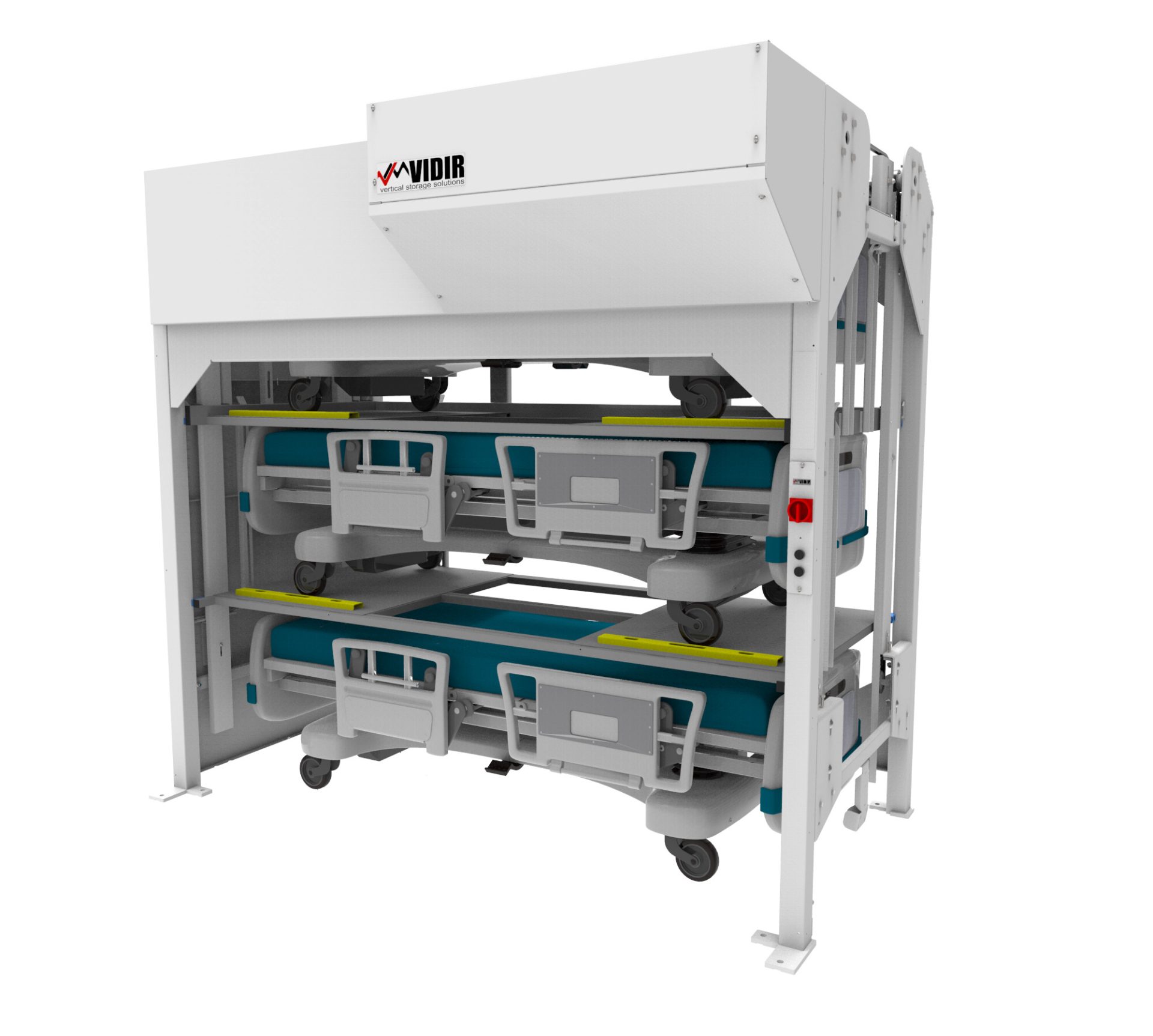

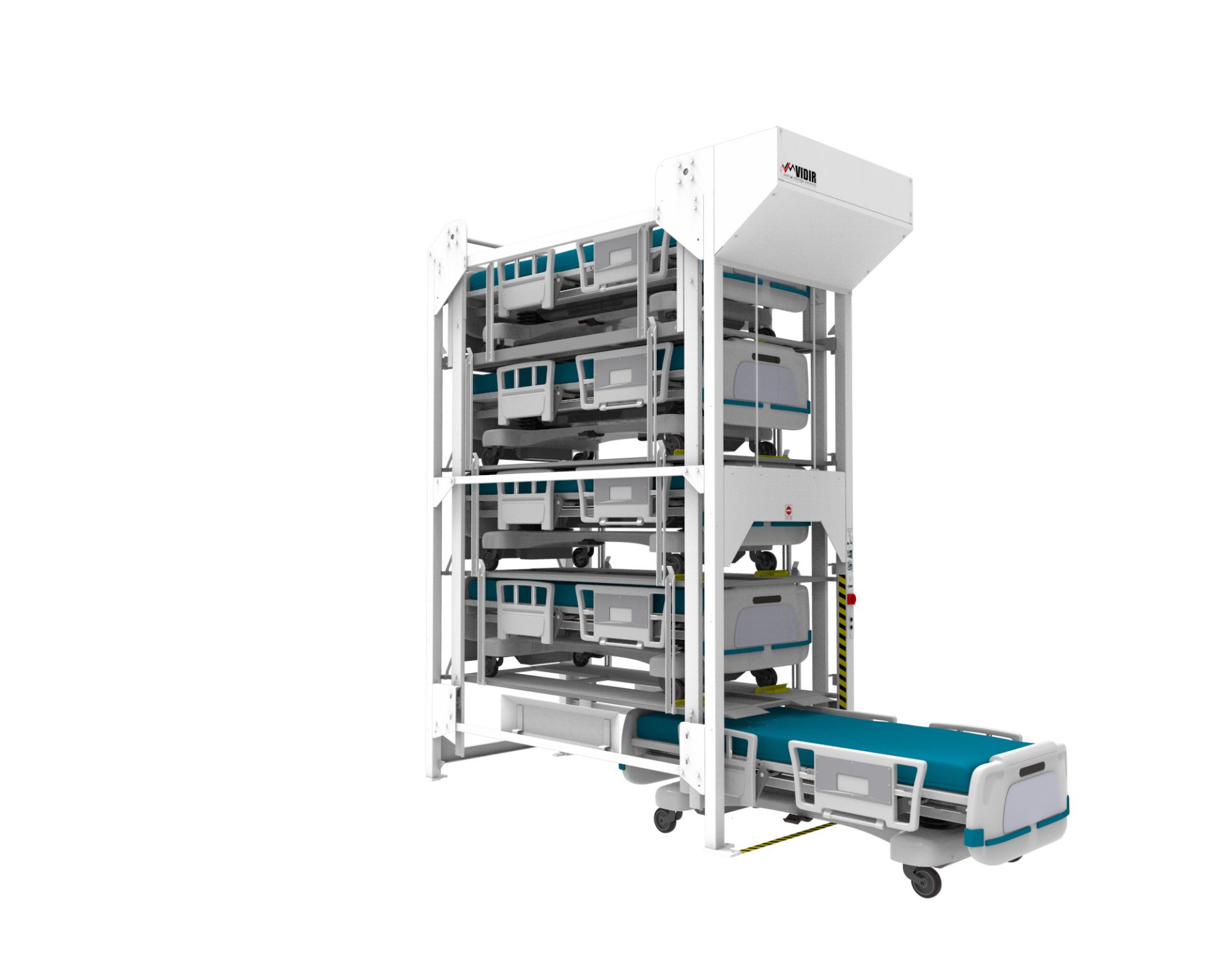

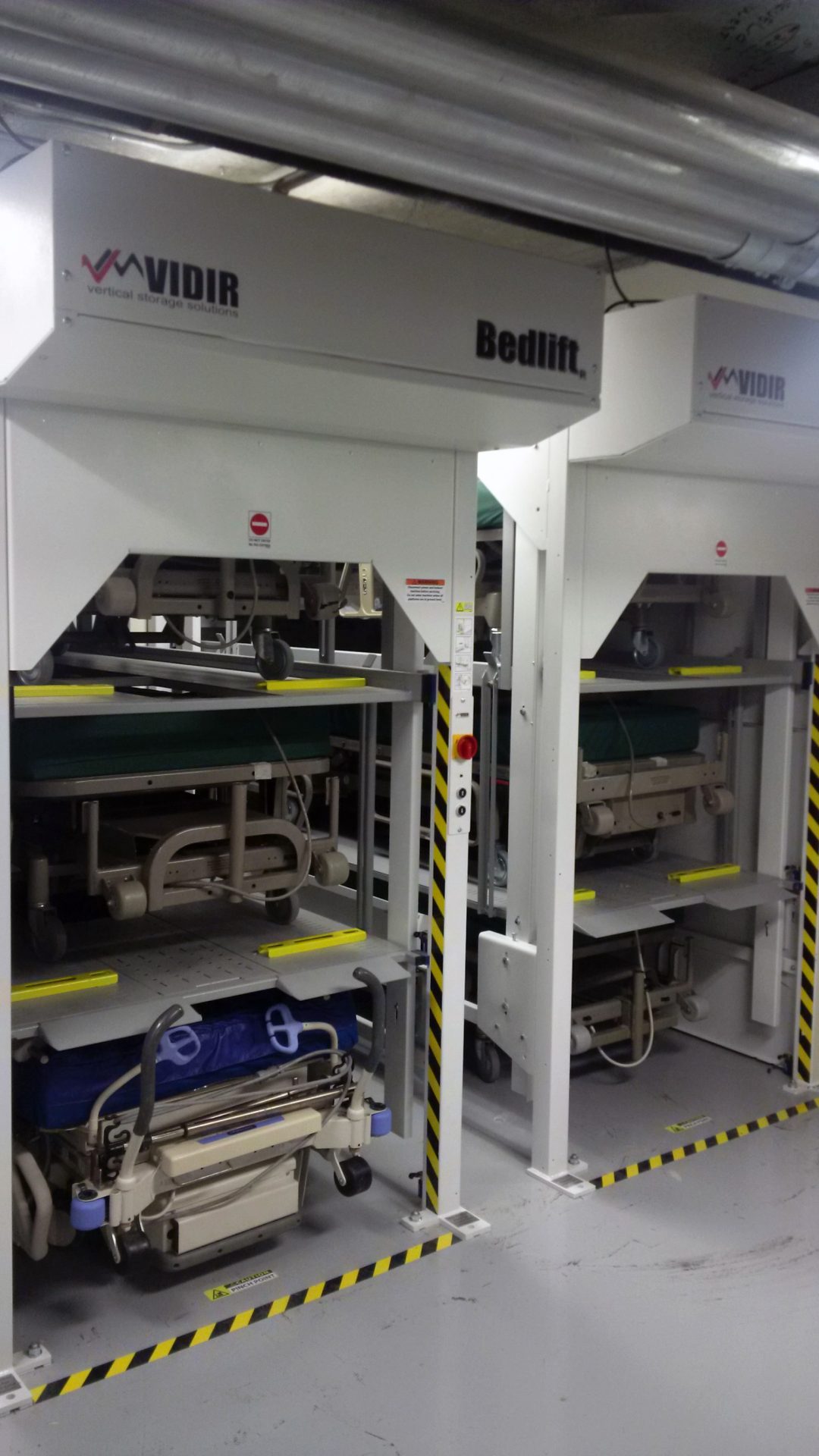

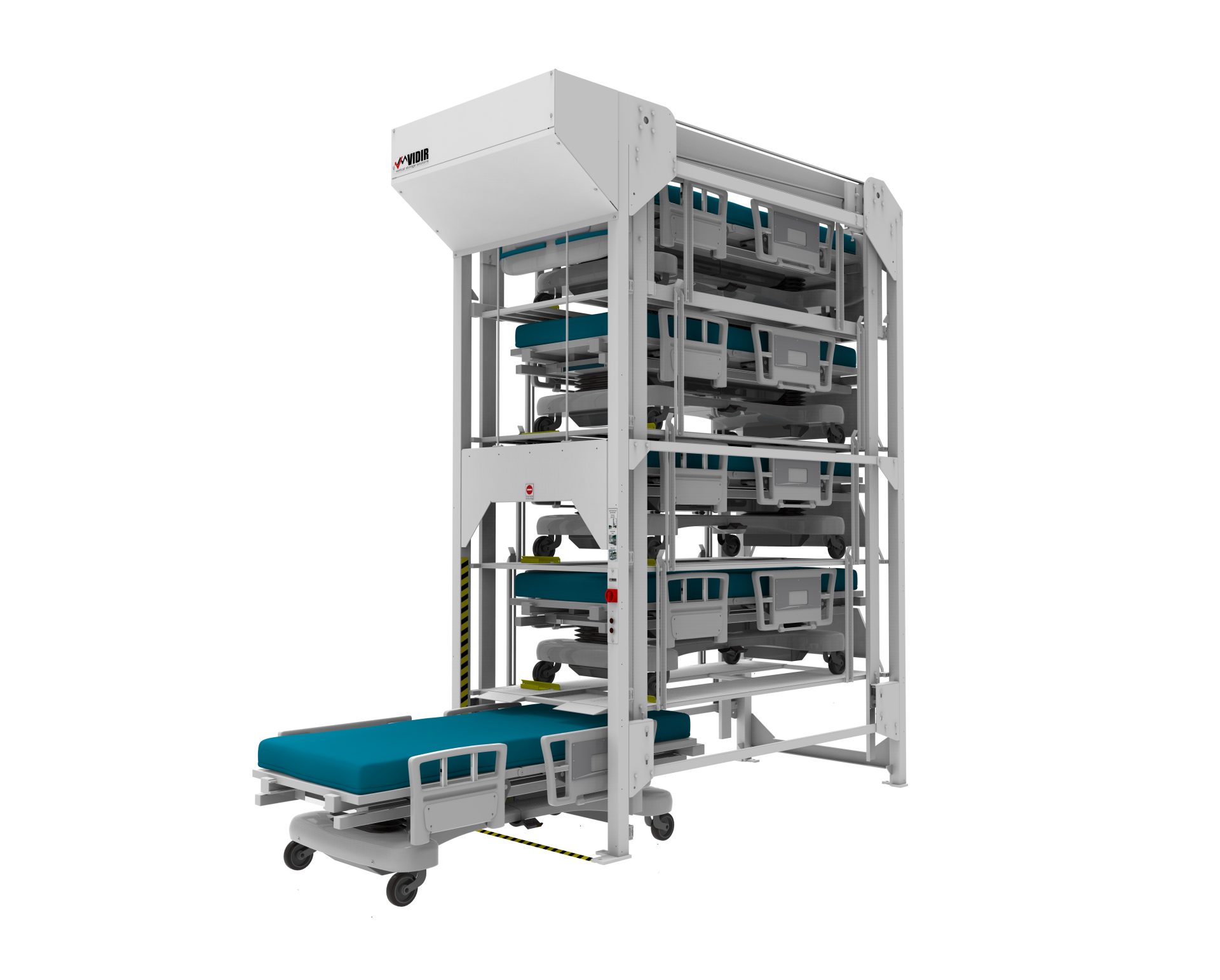

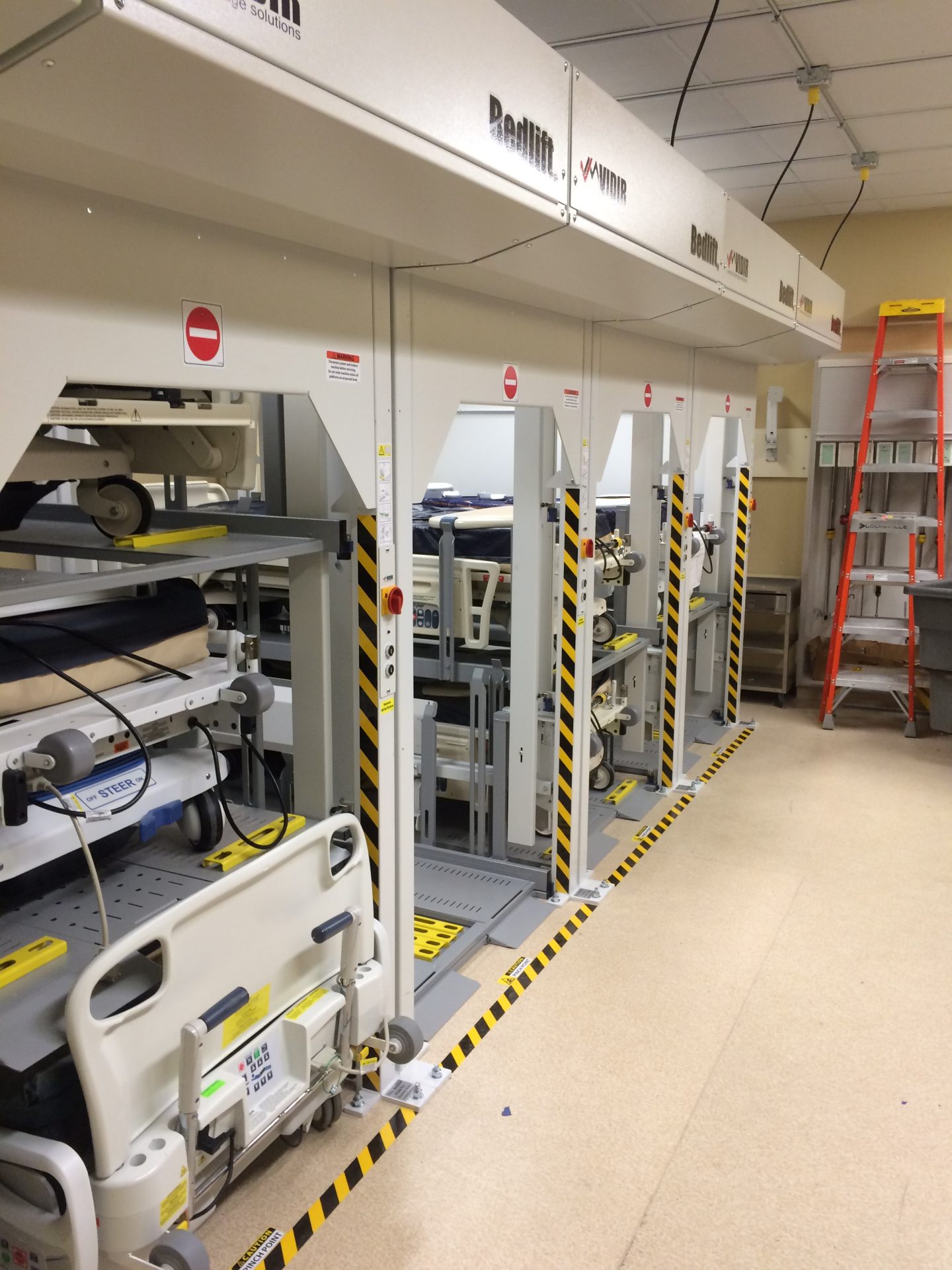

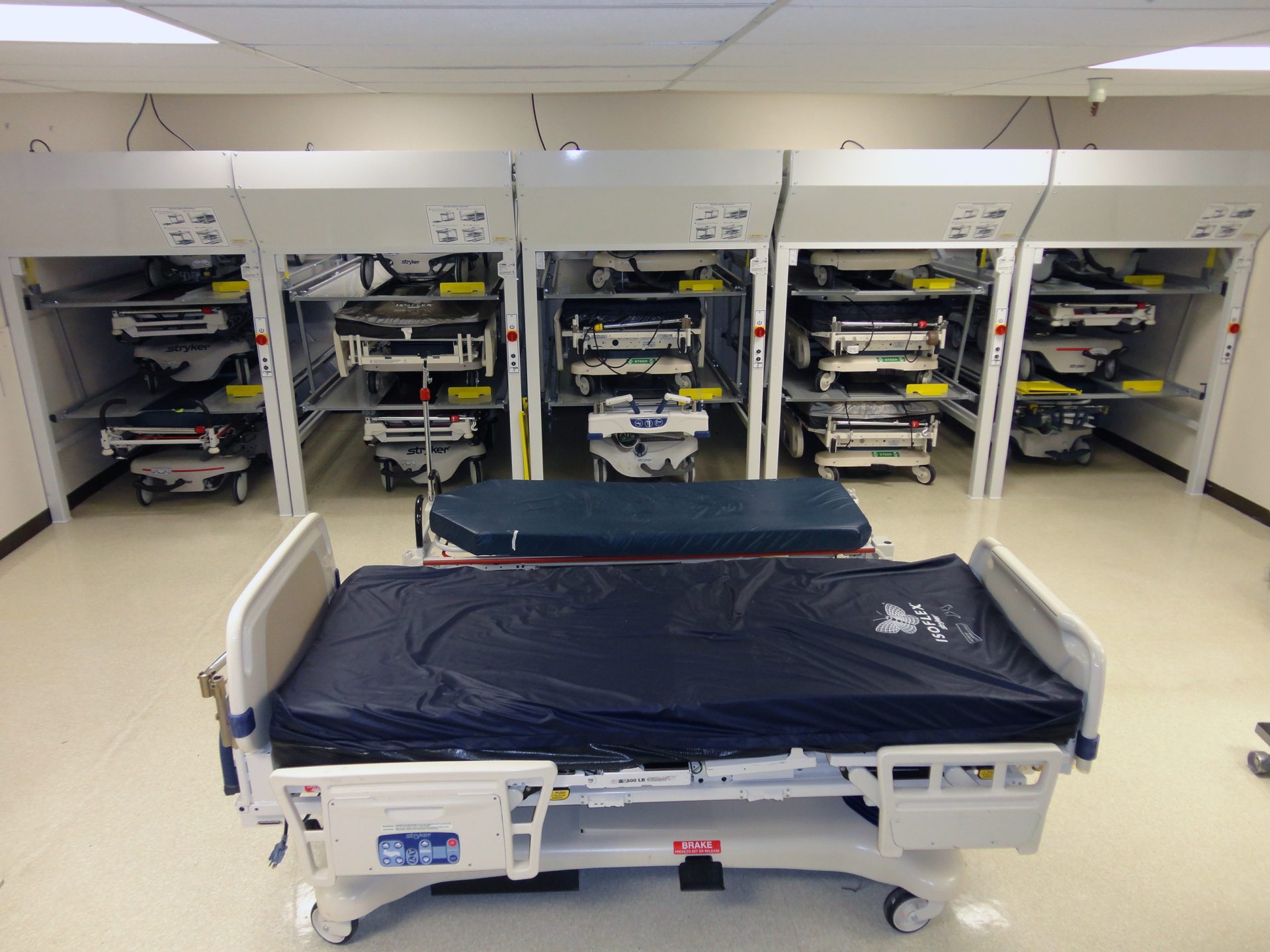

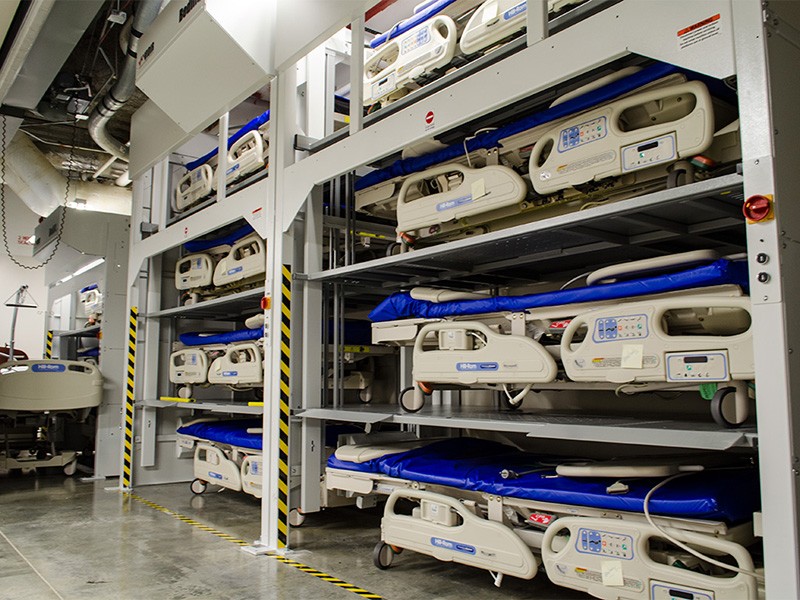

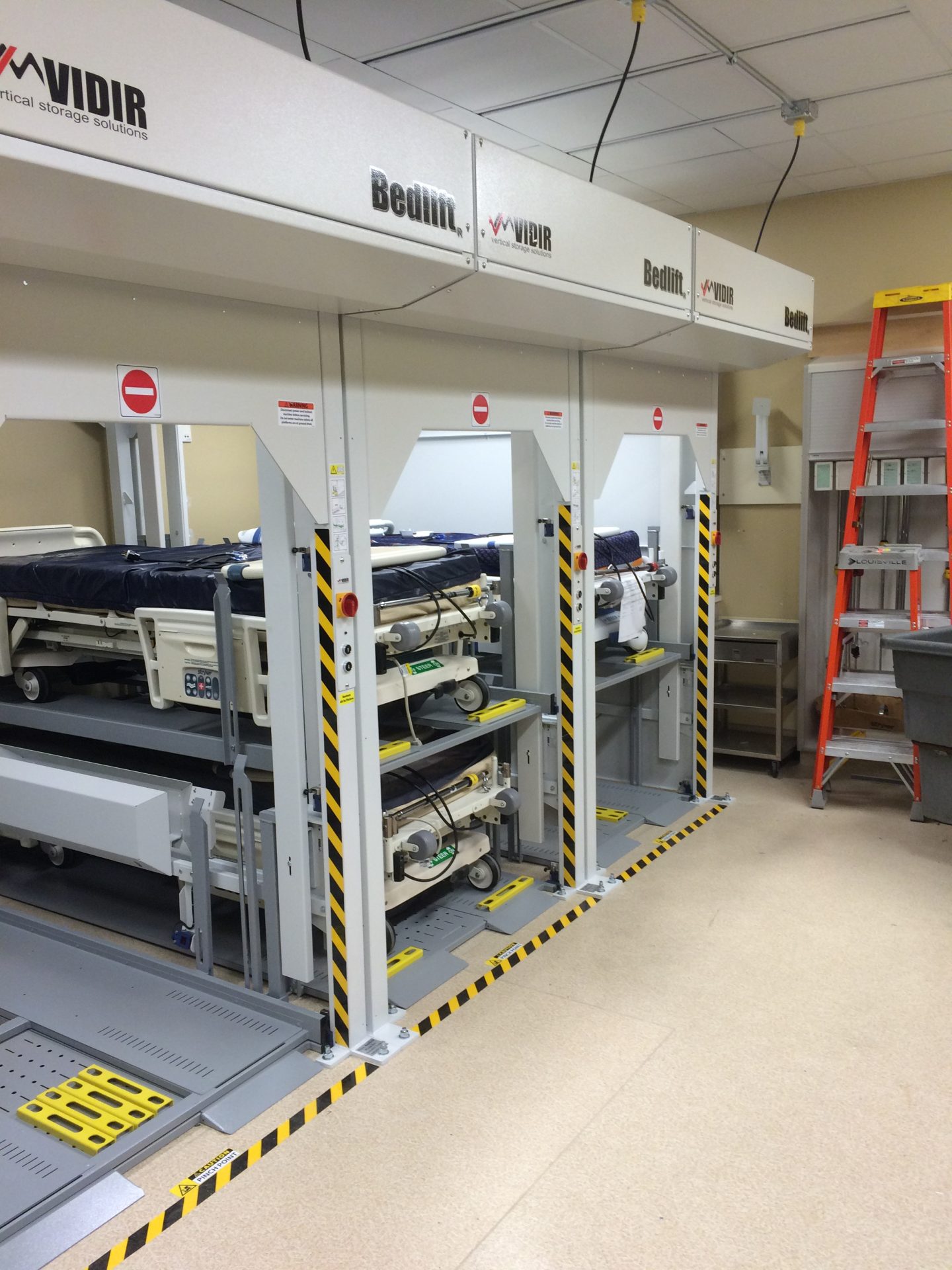

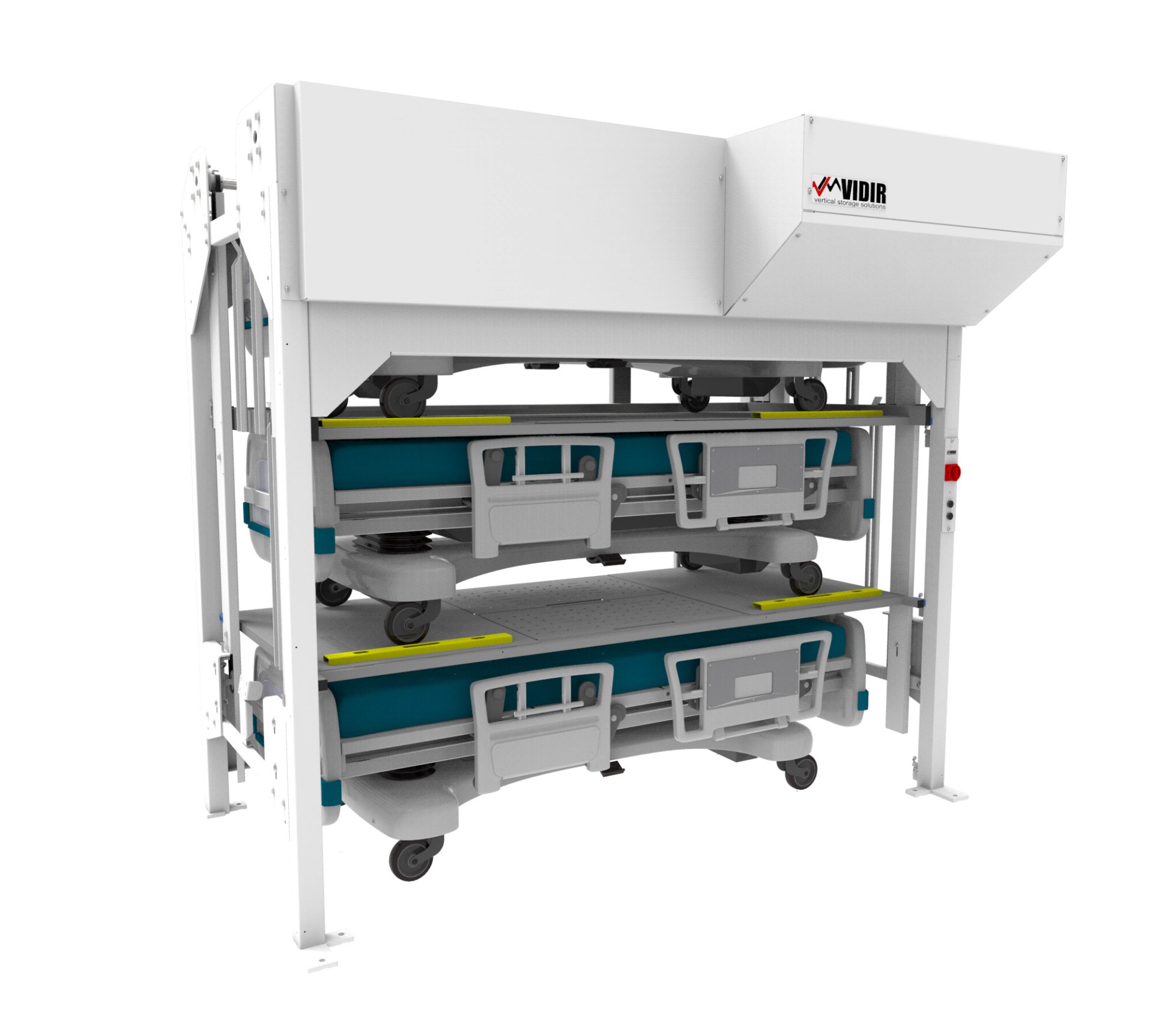

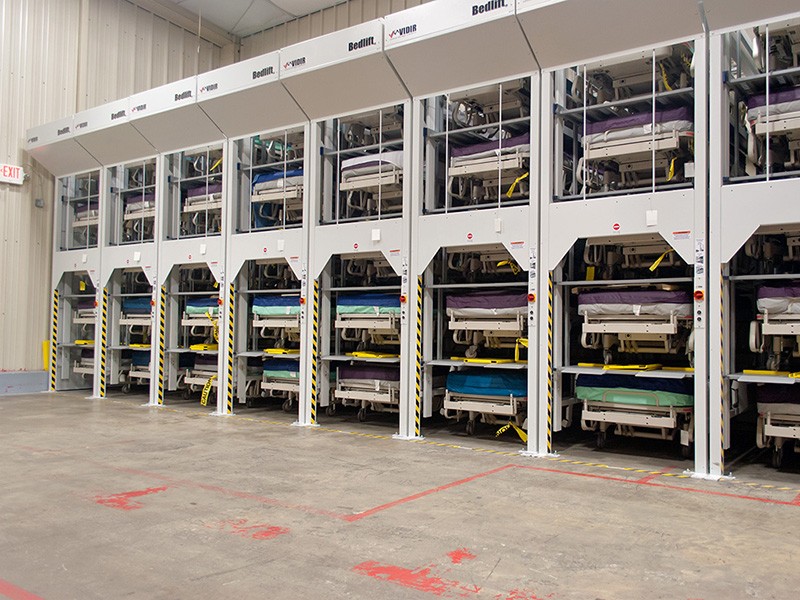

This automated hospital bed storage system is an economical solution for stowing hospital beds vertically. It not only conserves essential floor space but also mitigates fire risks in hospital corridors by keeping beds off the ground. This storage rack enhances the efficiency of hospital maintenance departments by improving capacity, organization, and the flow of products. Consequently, it minimizes downtime and boosts the availability of beds for patient care. The stacking system for hospital beds operates on a LIFO (Last In First Out) principle. When a bed is placed onto the lift, it is raised, freeing space beneath for the next bed. This process can be efficiently and safely managed by just one person with the simple push of a button. Each lift has the capacity to fit five beds.

Options and accessories:

  • Platform inserts
  • Vertical security gate
  • Anti-microbial paint
  • Seismic package
  • Side panels
  • Back panels
  • Colour change
  • PM packages

Models:

Bed lift R – A regular duty model of bed lift, accepts 80-90% of hospitals beds with a vertical pitch of 27. Unit loads from the front and has a 600 LBS capacity.

Bed lift X – Extra capacity bed lift that can accept the extra 10-20% of hospital beds with a vertical pitch of 27. Unit loads from the front and has a 600 LBS capacity.

Bed lift S – Side load bed lift, requires less space for loading and unloading. Ideal for spaces with constraints and space limitations.

Crib lift C – Specifically designed for hospital cribs, with a lift capacity of 600 LBS. Unit loads from the front.

Stock No. Height Width Depth Bed H Bed W Bed L Capacity (LBS) Positions
ST327-45R 8′ 0″ 4′ 6″ 10′ 0″ 26″ 44.5″ 95″ 600 3
ST427-45R 10′ 3″ 4′ 6″ 10′ 0″ 26″ 44.5″ 95″ 600 4
ST527-45R 12″ 6″ 4′ 6″ 10′ 0″ 26″ 44.5″ 95″ 600 5
ST233-45X 7′ 3″ 4′ 6″ 9′ 2″ 32″ 44.5″ 95″ 900 2
ST333-45X 9′ 6″ 4′ 6″ 10′ 0″ 32″ 44.5″ 95″ 900 3
ST433-45X 12′ 3″ 4′ 6″ 10′ 0″ 32″ 44.5″ 95″ 900 4
ST327-96S 8′ 0″ 8′ 9″ 4′ 7″ 26″ 44.5″ 95″ 600 3
ST427-96S 10′ 4″ 8′ 9″ 4′ 7″ 26″ 44.5″ 95″ 600 4
ST240-40C 8′ 0″ 4′ 0″ 6′ 9″ 39″ 39″ 75″ 600 2
ST340-40C 11′ 3″ 4′ 0″ 6′ 9″ 39″ 39″ 75″ 600 3
