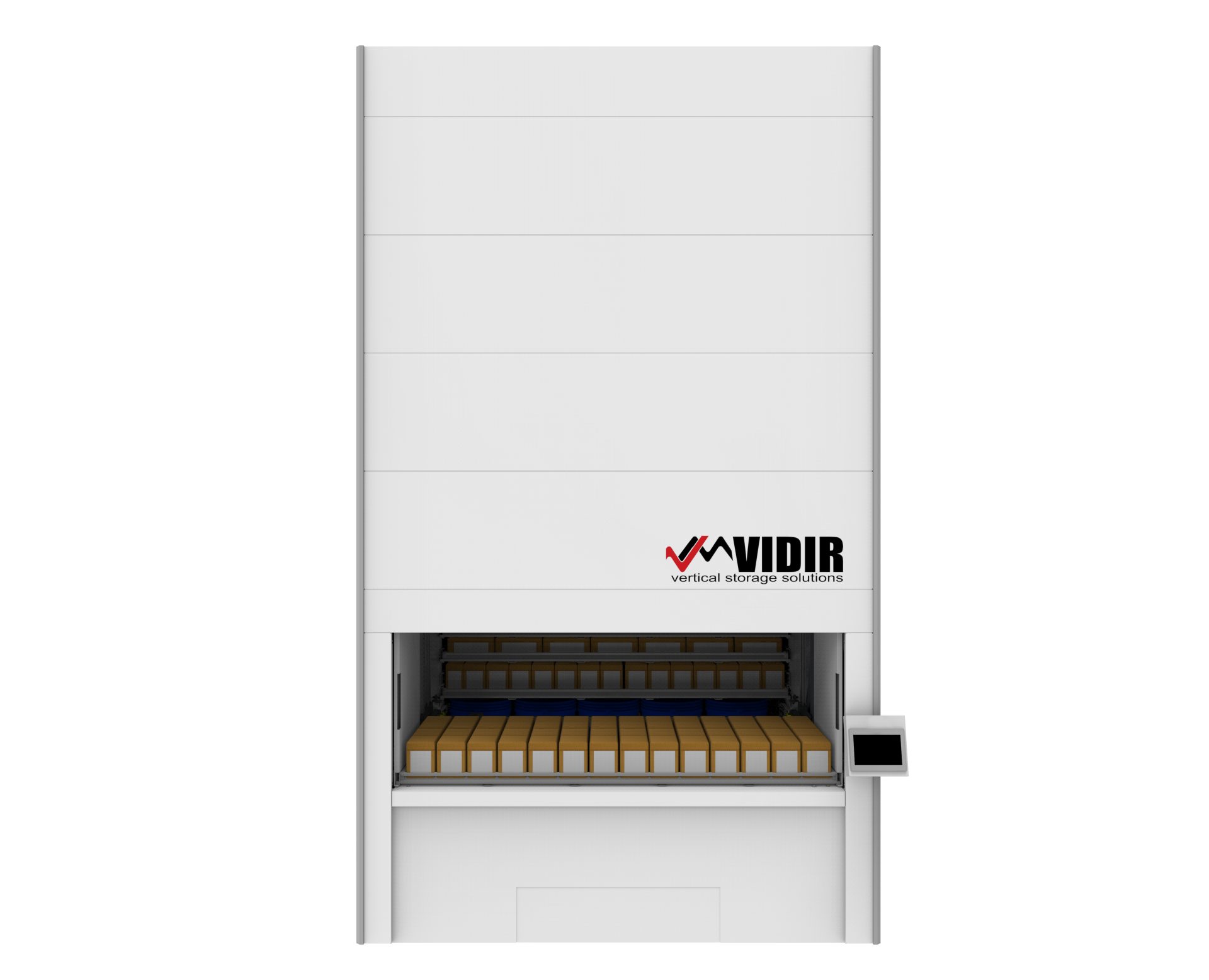

Vertical Lift Module
- Vertical drive system: 10HP vertical servo motor
- Horizontal drive system: 2HP servo motor
- Auto retrieval tray control with 12″ HMI touchscreen display (right or left side location)
- Electrical: feeds from top right of machine, 480V 3Phase 30 Amp
- Vertical lift speed: max 1.67′ per second
- Horizontal lift speed: max 0.83′ per second
- Light curtains included
- Variable height sensors included
- Overall capacity: 132,000 lbs
- Max load per tray: 600 or 1000 lb options available
- Full enclosure
- Colour: VM Textured White
- cCSAus mark
- Seismic ready design
- 2 year manufacturer’s warranty

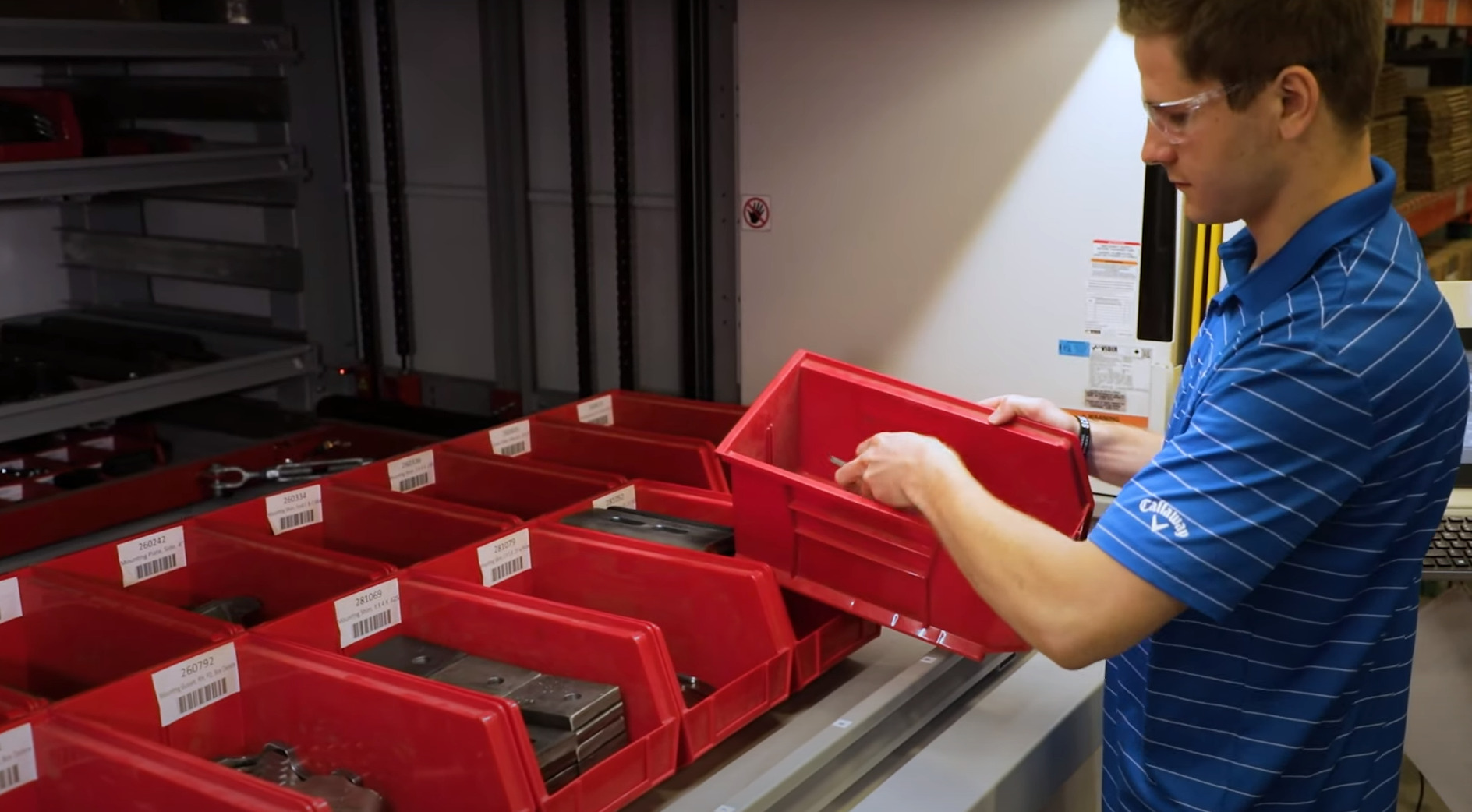

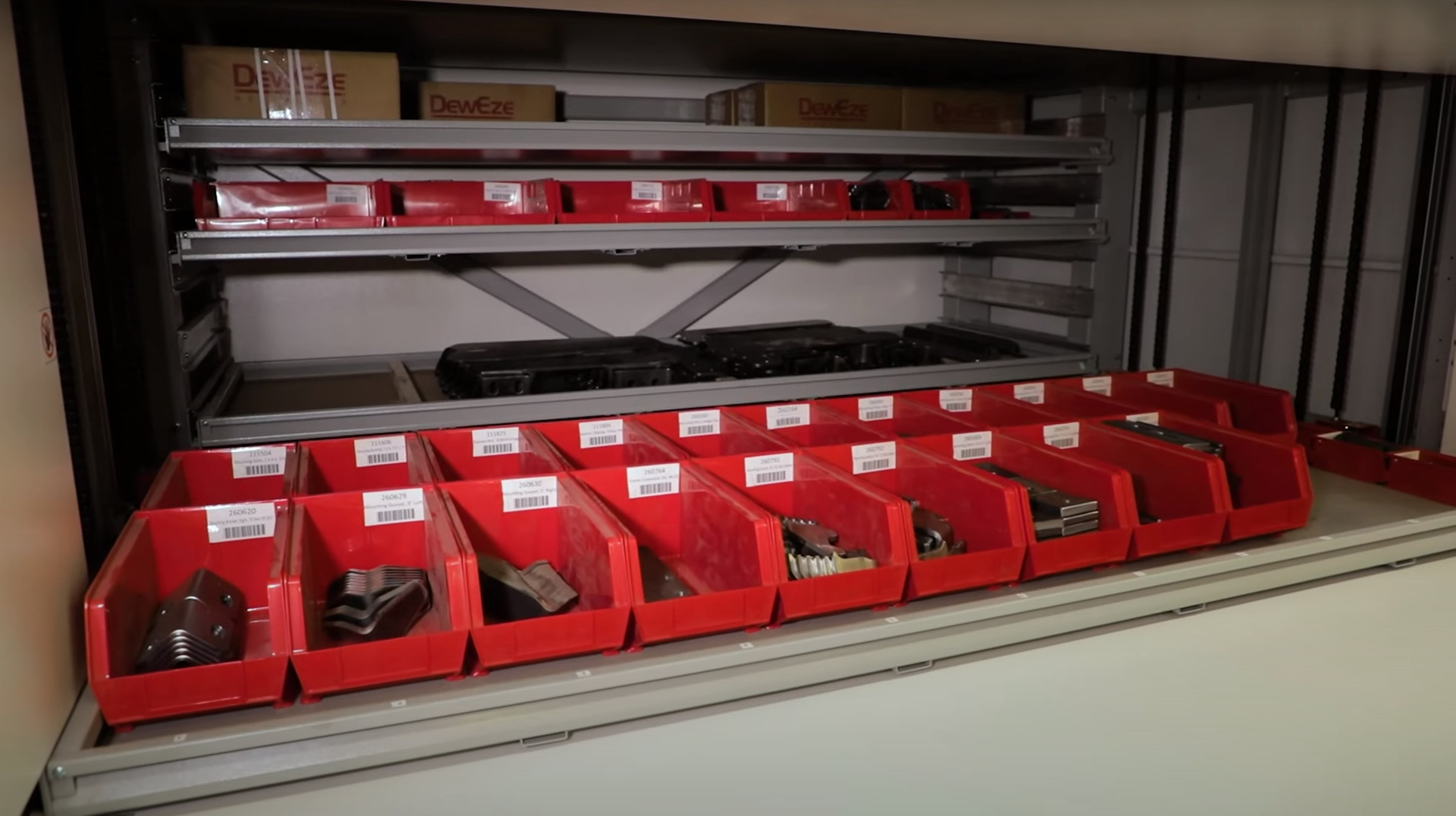

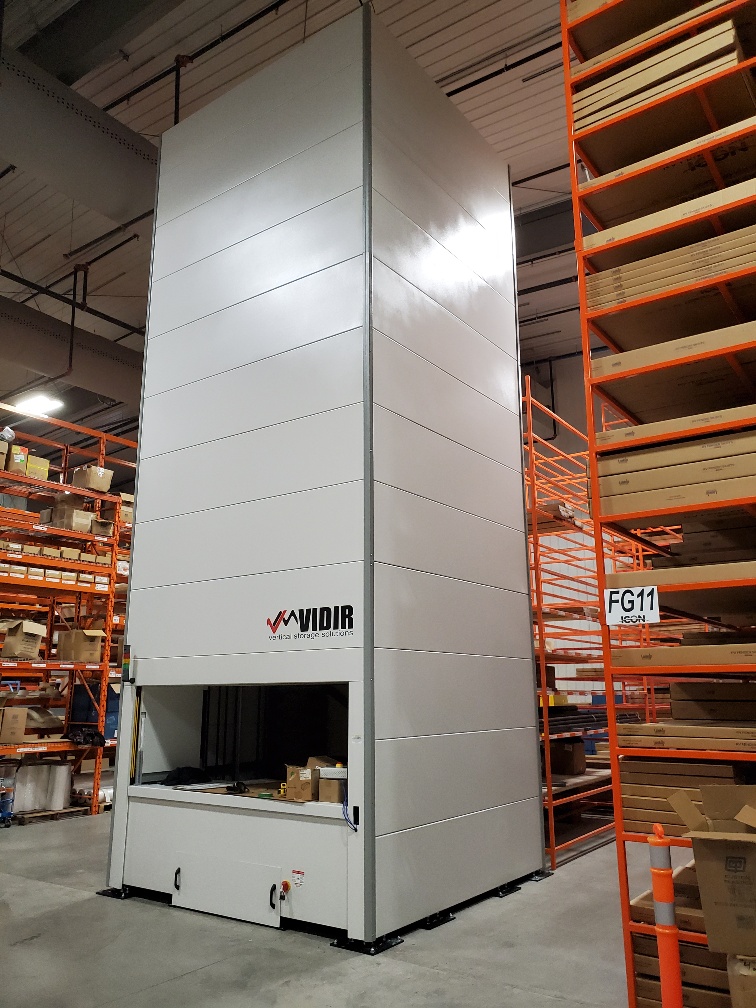

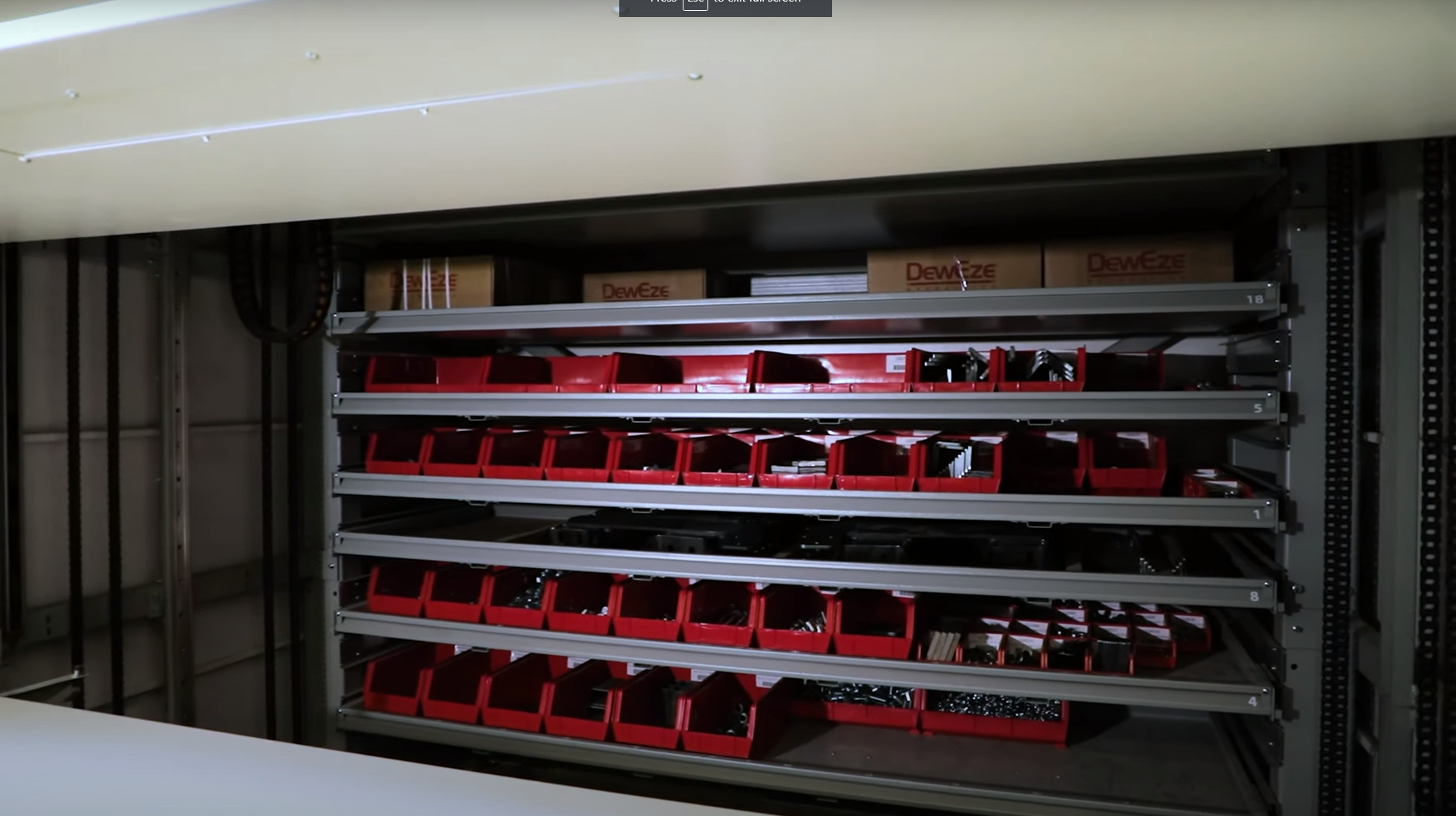

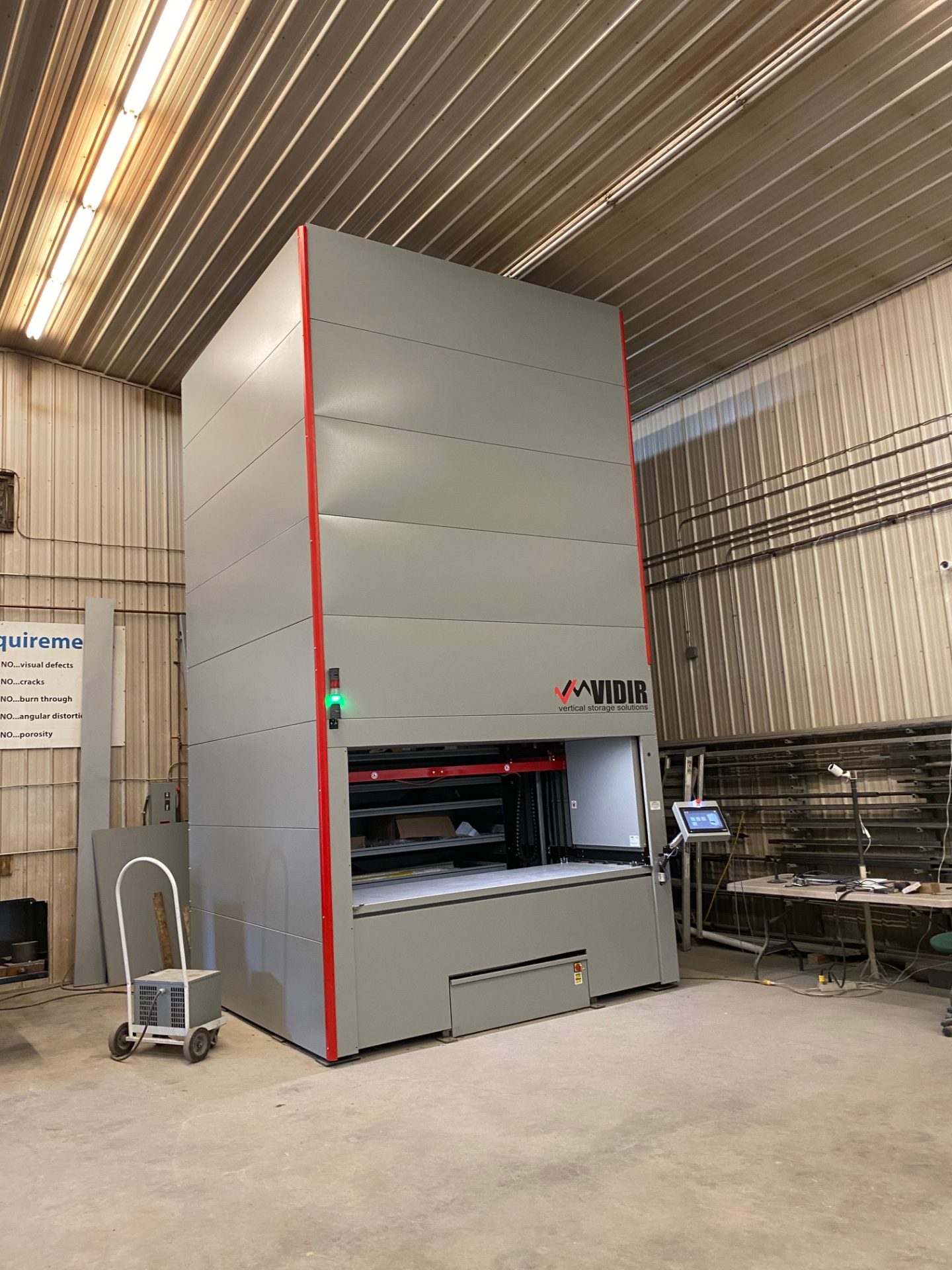

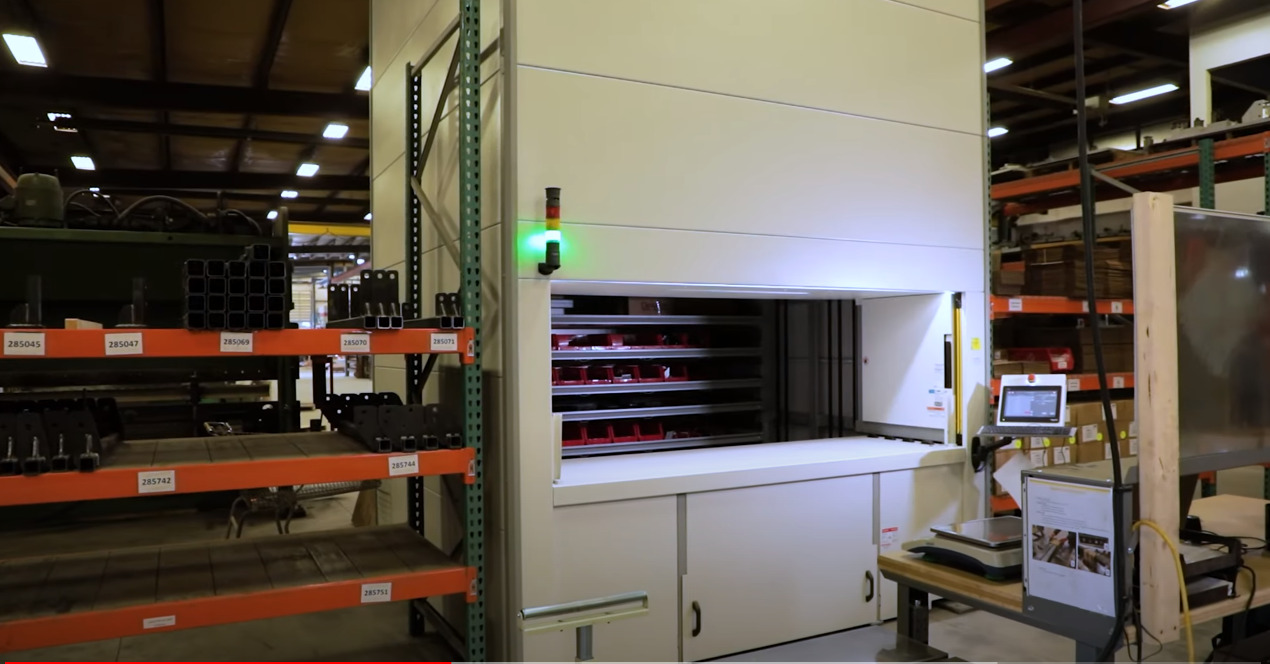

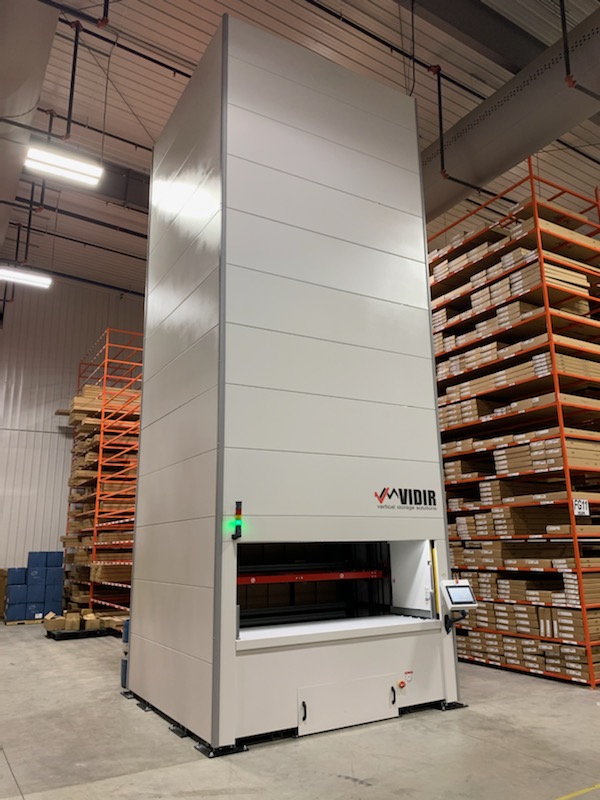

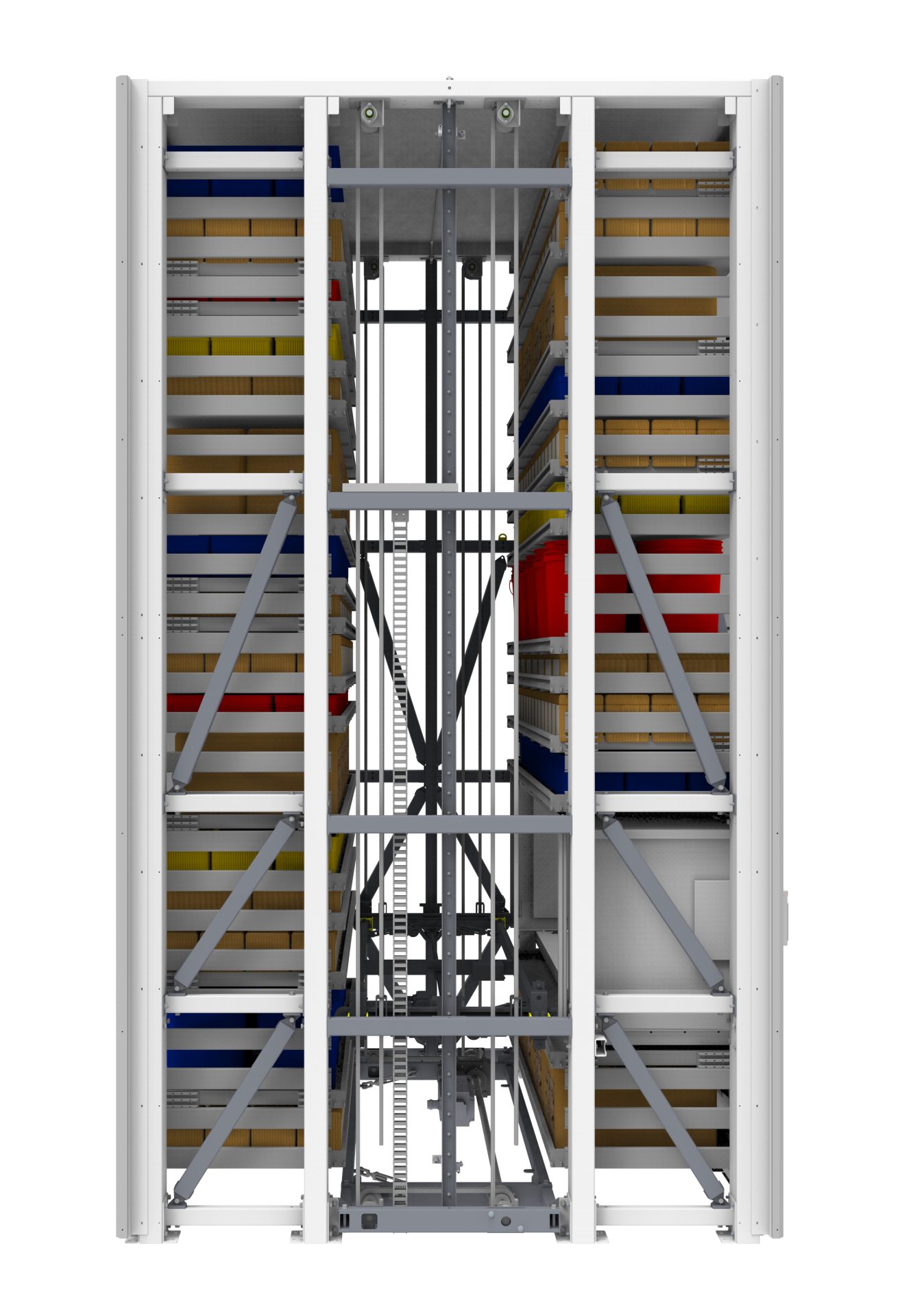

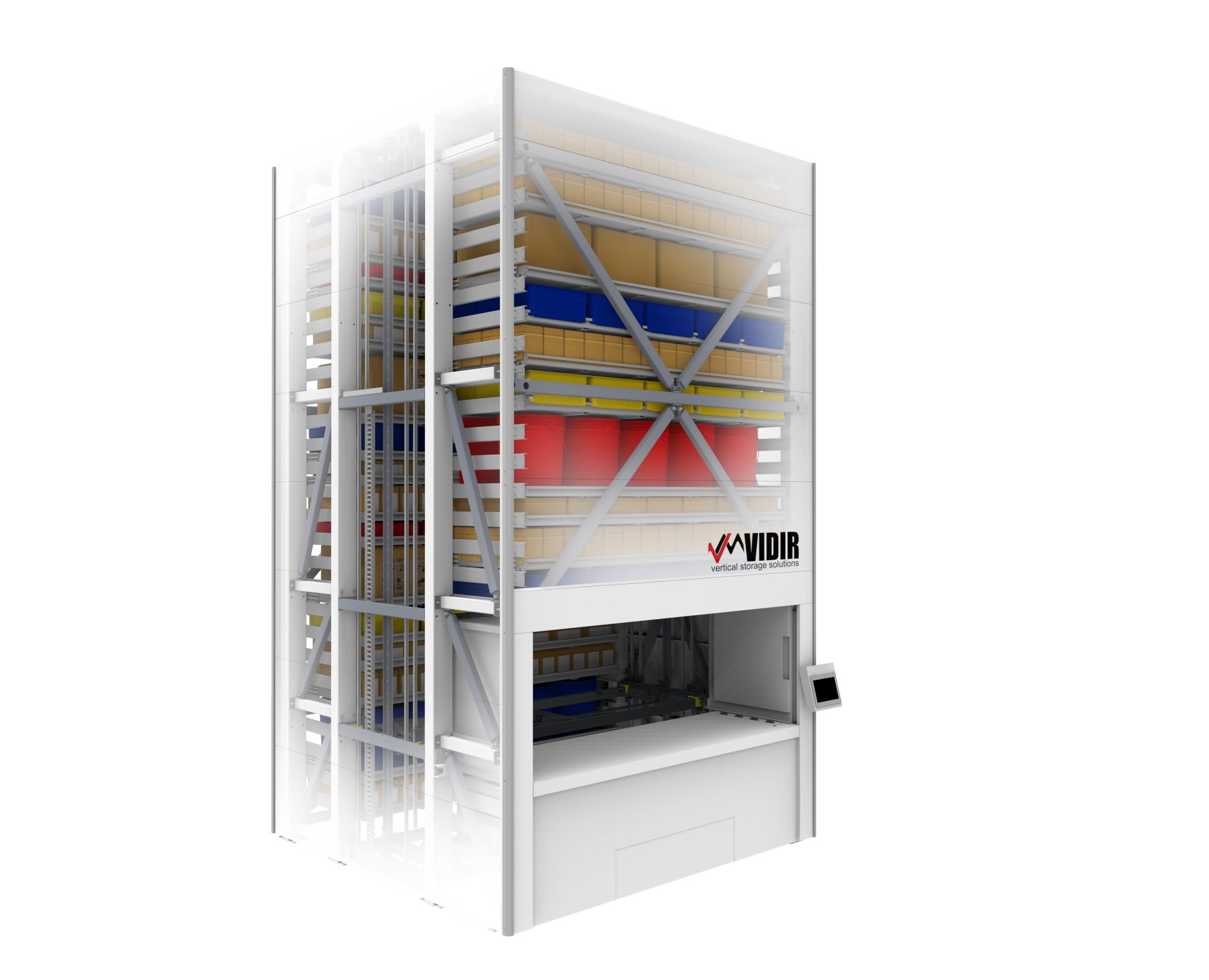

The vertical lift module (VLM) is an automated storage and retrieval system which allows for density and productivity to be optimized. Using two tray towers (one in the front and one in the back) along a central elevator, trays are extracted quickly and presented at an ergonomic height for the operator. The VLM’s vertical design saves up to 85% of your floor space, and utilizes a user-friendly retrieval system for raw materials.
Some of the industries and applications vertical lift modules are perfect for include:

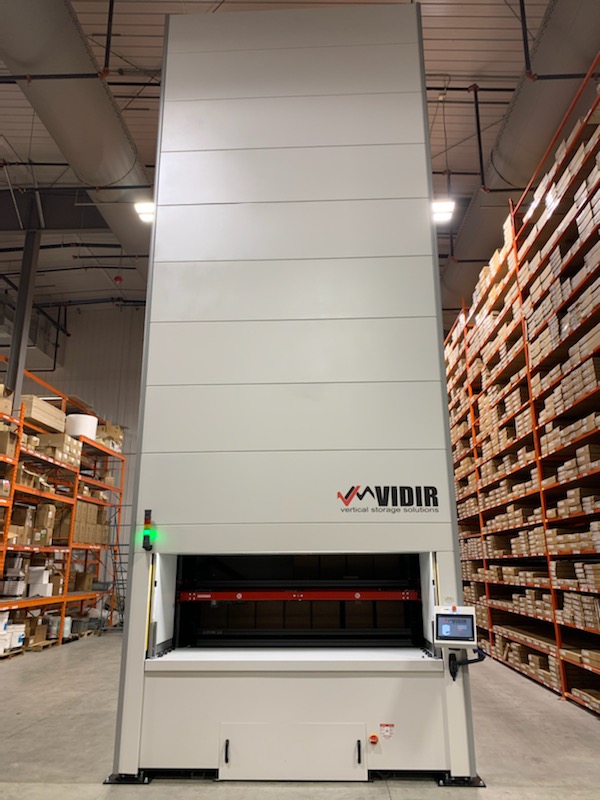

- Warehouse applications
- Automotive industry
- Construction industry
- Energy industry
- Health care
- Manufacturing industry
With automatic height detection, the VLM can accurately measure the amount of storage space required by each tray and perform calculations to find the optimal storage location. Its intelligent software allows you to make your handling of materials as efficient as possible. The VLM also features a user friendly interface which allows you to be in total control of your inventory; pick and stock item lists, integrate with your ERP system, run reports from a connected PC, and includes remote access for service diagnostics. It is also environmentally sustainable, utilizing recyclable materials to reduce CO2 emissions.
Options and Accessories:
- Fold out external tray access arms
- Tray transporter
- Pick-to-light
- Bar code scanner
- Badge reader
- Multiple load capacities
- Colour change (RAL)
- PM packages
