Bar Stock VLS

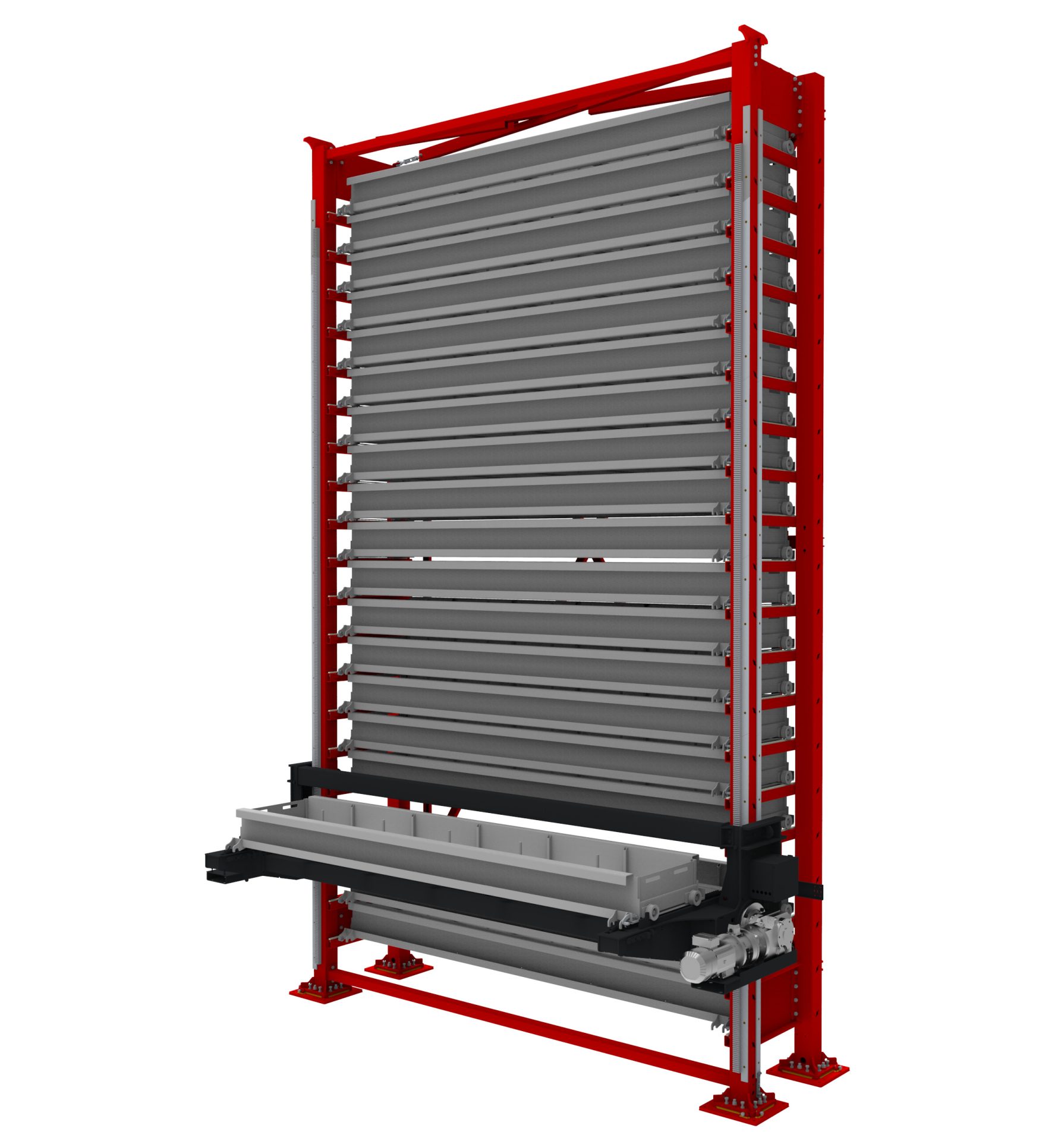

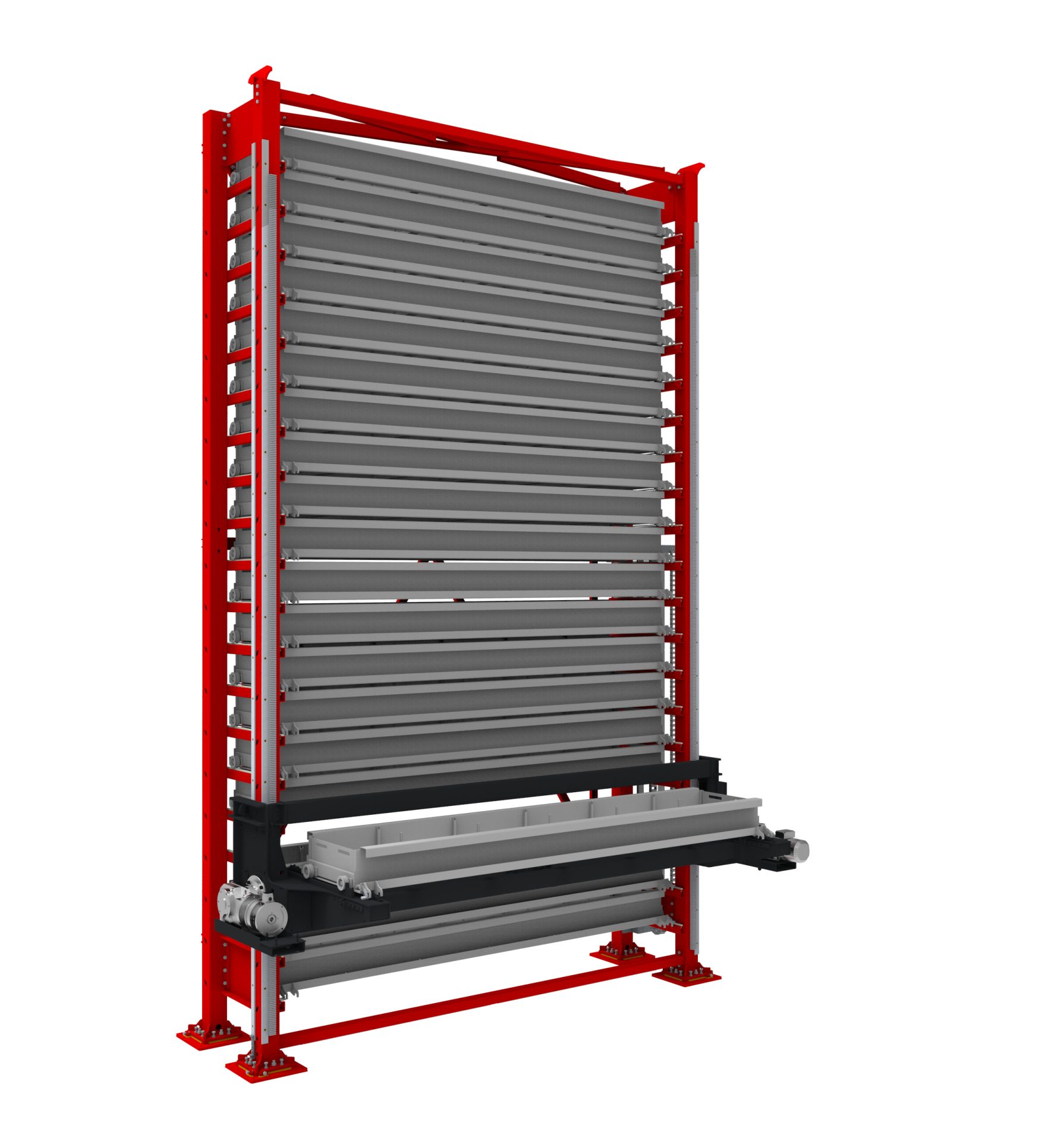

The bar stock vertical lift system (VLS) is extremely versatile, as it is able to accommodate a variety of sizes and applications. Cartridges can hold linear objects like bar stock, pipes, and beams. With the ability to be customized with molds for specific applications such as press brake dies, your material storage will remain effective, organized, and safe.

  • Automatic controls featuring drawer selection
  • Emergency stops are located at the left and right of the tower
  • Overload sensing returns the lift to the home position when activated
  • Access restriction provided by fencing around the perimeter and light curtains prevent access during operation
  • Process brake and redundant brake engaged with the safety system
  • Each drawer is individually locked in place until released by the elevator
  • Motors: 2 x 5 HP motors, 1 x 3/4 HP motor
  • Safety system: designed to SIL3 / CAT4 / PL e
  • cCSAus mark
  • 2 year manufacturer’s warranty

Industries and applications where the bar stock VLS would be ideal include:

  • Warehouse applications
  • Manufacturing industry
  • Energy industry
  • Automotive industry
  • Aviation industry

Free up more available inventory with automated longspan shelving through utilizing overhead space and eliminating the need for bulky shelving and a larger warehouse. Efficiency is also increased due to enhanced accessibility and product flow. The bar stock VLS boosts health and safety as it ensures a secure and controlled delivery method for heavy items that need to be stored overhead. This system also minimizes the chance of damage to products through single-point storage, decreasing the risk of accidents.

Options and Accessories:

  • Light curtain
  • Colour change (RAL)
  • PM packages

Did you know?
As a leader in industrial, material handling, warehouse and storage products we provide installation services for any product we offer. We also have leasing opportunities available.
